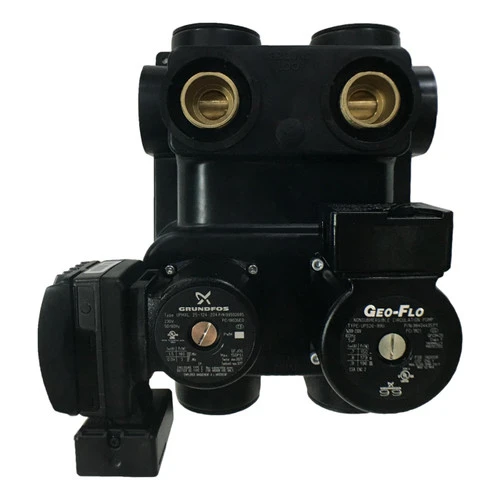

Geo-Flo Two-Pump Pressurized Variable Speed Flow Center with Flo-Link Double O-Ring Connections
Features:
- Grundfos UPMXL 25-124 Variable Speed Circulating Pump & UPS26-99 3-Speed
- Inverted Profile for units with DXM2 Controls (Climate Master Units)
- 208-230V, 1PH, 60Hz
- Cast Iron Pump Volute
- Composite Cabinet
- Spray Polyurethane Foam (SPF) Insulation
- Brass Die Cast 3-Way Spool Valves
- 1″ Flo-Link Double O-Ring Connections
The FL-Series flow center is the most widely-recommended flow center by geothermal equipment manufacturers
Each unit contains:
- Mounting hardware
- One set of 1-1/4″ fusion x Flo-Link adapters (for loop side)
Check out our complete line of Flo-Link Double O-Ring fittings and adapters
Replaces previous Geo-Flo flow center model FLV2, Part Number 1299N
