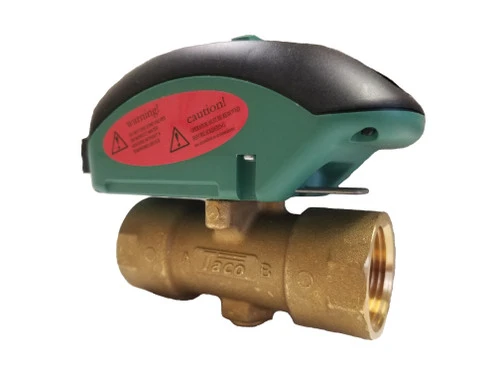

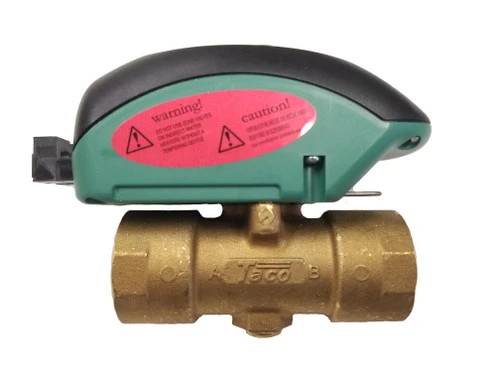

Taco Motorized Zone Sentry 1″ NPT 2-Way Normally Closed 24V Ball Valve

This Taco Geo-Sentry Motorized Ball Valve provide on-off control especially suited for use in Closed-Loop geothermal systems with water source heat pumps.

Brass Valve body, motorized ball, 1″ FPT, 24V with end switch, Cv=8.9

Motor actuator can be mounted on valve body in either direction for ease of wiring

Snap-in quick connects make for a simple, secure and fast wiring hook-up

Green LED light shows full functionality of the valve’s operation and thermostat status

Under a no power situation the manual override button located on the top of the valve allows the ball to be rotated up to 90 degrees and is marked with a slot to indicate the position of the valve.

Max Operating Pressure – 300 PSI

Max Shutoff Pressure – 125 PSI

Max Ambient Temperature – 135F

Fluid Temp Range – 20-220F

Ball Rotation Speed – (90 deg turn) – approximately 5 seconds

Electrical Rating – 24VAC, 60Hz, 0.48 Amps

Product Specifications
