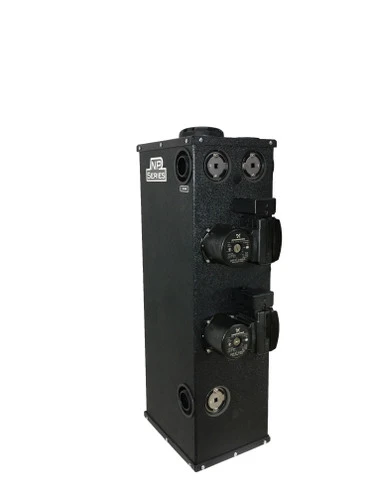

NP Plus Variable Speed 2 Pump Flow Center – Grundfos (2) UPMXL 25-124 Pump-Standard AXB Profile

Geo-Flo Two-Pump Non-Pressurized Variable Speed Flow Center with Flo-Link Double O-Ring Connections

Features:

• Grundfos (2)UPMXL 25-124 Variable Speed Circulating Pumps
• Standard Profile for units with AXB Controls (Most Geothermal Manufacturers)
• 208-230V, 1PH, 60Hz
• Cast Iron Pump Volute
• Composite Cabinet
• Spray Polyurethane Foam (SPF) Insulation
• Brass Die Cast 3-Way Spool Valves
• 1″ Flo-Link Double O-Ring Connections

The Non-Pressurized Plus (NPP) flow center includes all the features of the standard NP flow center but also

includes ground loop fittings (1-1/4″ PE Fusion x Flo-Link) and an additional 3-way valve to completely isolate

the earth loop from the heat pump, and allow the loop to be flushed separately from the heat pump.

Each unit contains:

• Mounting hardware
• One set of 1-1/4″ fusion x Flo-Link adapters (for loop side)
• 3-way valve with insulated box

Check out our complete line of Flo-Link Double O-Ring fittings and adapters
