Geo-Prime Hybrid Tank System For Pressurized Flow Centers

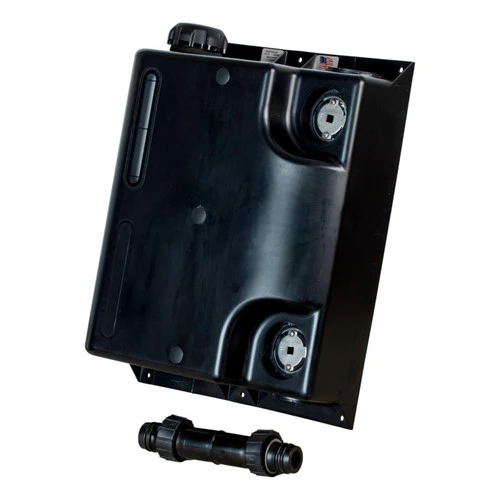

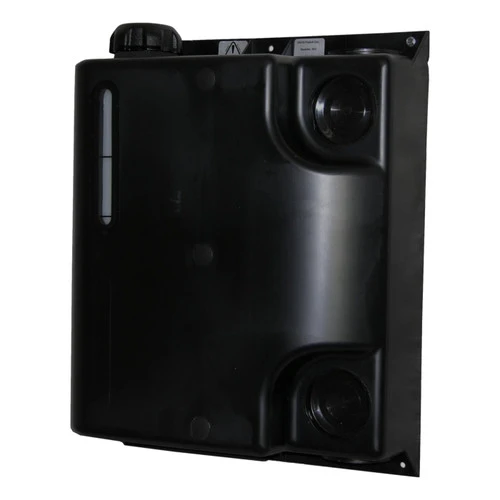

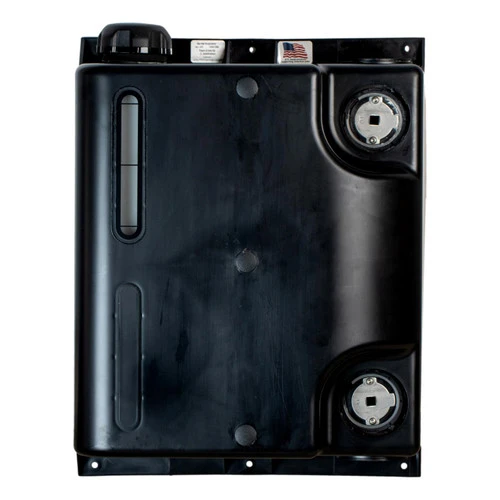

Geo-Prime Tank is a hybrid system with a tank that may be added to a standard pressurized flow center or pump to create a non-pressurized system. It consists of a fluid reservoir, two bypass valves and an air-eliminating dip tube inside of a foam insulated cabinet. The cap has an integrated pressure and vacuum relief to prevent the reservoir from becoming over-pressurized or collapsing. The tank is mounted above the suction flange of the pump to ensure a flooded volute and to provide the necessary suction head pressure.

Benefits include:

• HDPE construction with fused joints.
• Single pass internal air separation.
• Integrated pressure/vacuum relief in sealing cap.
• Integrated bypass valves to allow ground loop system to be flushed with industry standard flush cart.
• Utilized Flo-Link double O-ring connections for easy installation.
• Integrated “sight glass” for fluid level monitoring without removing cap.
• Approximately 2.5 gallon fluid capacity.
• Foam insulated high impact polystyrene cabinet.
• Modular system: may be used with pressurized flow center or insulated pump.

Manufactured in the USA
Geo-Flo Part number 1245
